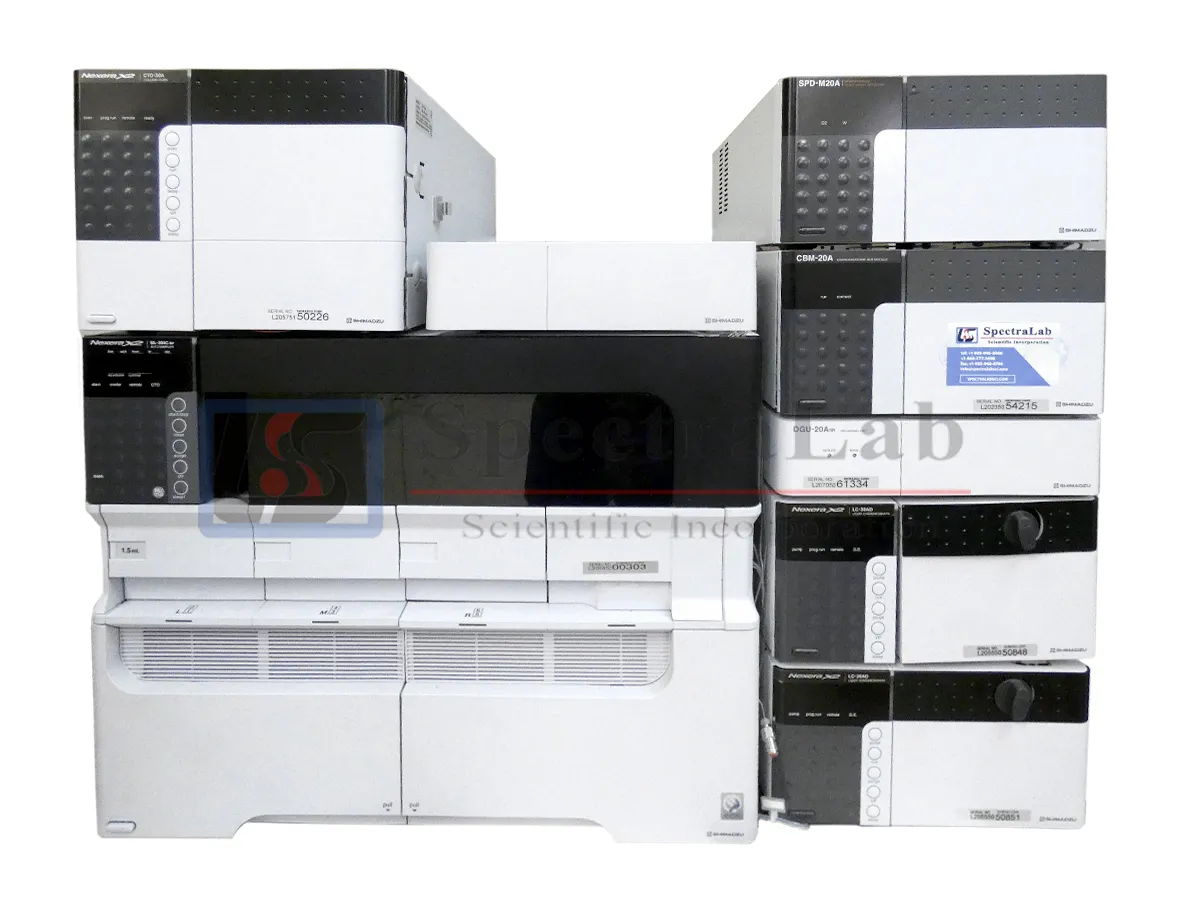

Shimadzu Nexera X2 UHPLC System
The Shimadzu Nexera X2 is a flexible system design achieves a true fusion between UHPLC and HPLC technologies, enabling the Nexera X2 to be used for a much broader range of applications. This UHPLC system not only offers maximum speed, sensitivity, resolution, stability, and reliability, it also features a revolutionary i-PDeA separation technology and an i-DReC function that extends the dynamic range so that both concentrated and trace components can be quantitated simultaneously.
System Includes:
- Prominence SPD-M20A or Nexera X2 SPD-M30A Photodiode Array Detector
- DGU-20A Degassing unit with solvent tray
- 2x Nexera X2 LC-30AD Liquid Chromatograph
- CBM-20A Communications Bus Module
- Nexera X2 SIL-30ACMP Autosampler
- Nexera X2 CTO-30A Column Oven
- PC with Data
Specifications:
| LC-30AD | |
|---|---|
| Degassing Unit | 3 or 5 Lines (Volume 400 μL) |
| Flow rate range | 0.0001 to 10 mL/min |
| Flow rate precision | No more than 0.06% RSD or 0.02 min SD, whichever is greater |
| Gradient type | High-pressure / low-pressure mixing gradient |
| Gradient / concentration precision | ±0.5% (specified conditions) |
| Maximum pressure | 130 MPa (0.0001 to 3 mL/min) 80 MPa (3.0001 to 5 mL/min) 22Mpa (5.0001 to 10 mL/min) |
| SIL-30ACMP | |
|---|---|
| Injection method | Needle-in-flowpath |
| Injection volume accuracy | ±1% (at 50 μL injectiong, n = 10) |
| Injection volume range | 0.1 to 50 μL (Option: 0.1 to 100 μL) |
| Injection volume reproducibility | RSD: 0.2% maximum (at 10 μL) |
| Samples capacity | Sample plate: 324 (1.5 mL), 576 (96 well MTP/DWP Plates), 2304 (384 well MTP/DWP plates) Control plate: 10 (1.5 mL) |
| Sample cooler | Block cooling/heating, used together with defumidifying function 4 to 40°C |
A 90 day warranty is included. Extended warranty, installation and training options are available. We have other detectors and autosamplers in stock if you require a different configuration.We have special expertise on analytical equipment. We encourage you to contact us to speak with one of our expert and professional team members. Thanks for looking and we look forward to hearing from you!
Please contact us for a quotation or any inquiries.
