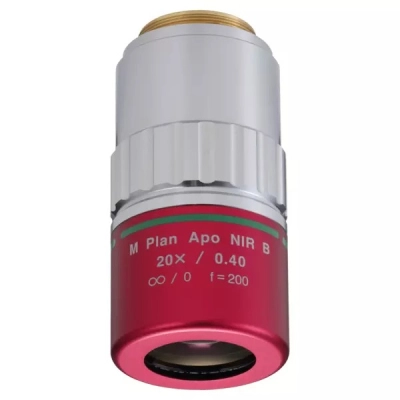

Mitutoyo M Plan Apo NIR B 20X 378-867-5

Mitutoyo M Plan Apo NIR B 20X 378-867-5
Features

Infinity Corrected
Suitable for Bright Field Inspection and Laser Applications
Long Working Distance 25.5 mm
High Quality Plan Apochromat Design
Wavelength Correction from Visible to Near Infrared (1800 nm)

Specifications

Model:

M Plan Apo NIR B 20X

Magnification:

20x

Working distance:

In Air: 25.5 mm

Corrected Wave Length:

420-1064nm

N.A.:

0.4

f:

10mm

P.D.:

95mm

R:

0.7µm

D.F.:

1.7μm

FOV 1:

ø1.2mm

FOV 2:

0,24 x 0,32mm

Abbreviations in product table:

N.A.: Numerical apertureW.D.: Working distanceP.D.: Parfocal distancef: Focal distanceR: Resolving powerD.F.: Depth of fieldFOV 1: Field of view when using ø24 mm eyepieceFOV 2: Field of view when using a digital camera with 1/2″ chip size

M Plan Apo NIR B:

Note:This series of objective has greatly improved in operability thanks to the achievement of an ultra-long working distance of 25,5 mm while maintaining the NA of the NIR series 20X/50X.

M Plan Apo NIR:

Note:These objective lenses are designed so that the image of a workpiece remains focused within the focal depth even when the wavelength used is changed from within the visible range up to the near-infrared (480 to 1,800 nm).Therefore the M Plan NIR Series are suitable for laser repair. However, when the wavelength used exceeds 1,100 nm, the focussing position may deviate slightly from that in the visible range due to changes in glass dispersion and refractive index.
