Malvern Panalytical- Omnisec Resolve

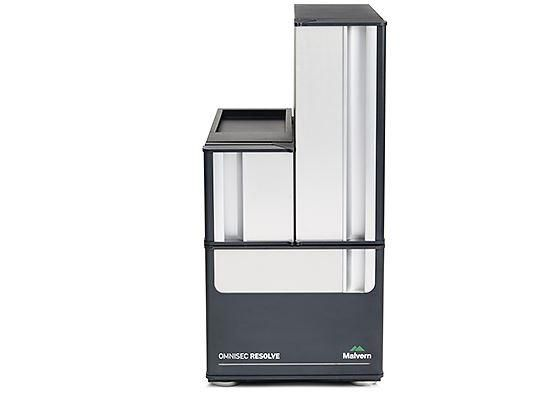

OMNISEC RESOLVE- Combined pump, degasser, autosampler and column oven, for high quality GPC/SEC and accurate molecular weight measurement.

OMNISEC RESOLVE combines with OMNISEC REVEAL to form a complete OMNISEC GPC/SEC solution for the measurement of absolutemolecular weight, intrinsic viscosity and other parameters. It combines an integrated pump, degasser, autosampler and column oven in a single advanced separations unit.

System

Pump flow rate :

0.005 – 10 mL/min

Flow rate accuracy :

±1%

Pressure range :

0 – 5000 PSI (34.5 MPa)

Pulsation :

0.15% @ 1 mL/min in water

Dimensions (W, D, H) :

420, 640, 890 mm

Weight :

62 kg

Software :

OMNISEC software v10 (or later)

Data acquisition rate :

100 Hz

Patents :

US 14/599,033 “Continuous back seal wash”

Autosampler

Capacity :

Up to 192

Sample container types :

HPLC vials or 96-well microtiter plates

Injection volume :

1 – 300 µL

Injection volume accuracy :

>99.5%

Injection volume precision :

<0.3% RSD in full loop mode

<0.5% RSD in partial loop mode

<1% RSD in µL pickup mode

Injection overhead volume :

0 µL in µL pickup mode

Syringe volume :

250 µL standard

Temperature control range :

4 – 60 °C

Column oven

Column capacity :

6 x analytical (1 x Tricorn 10/300 GL)

Temperature control range :

20 – 65 °C

Operating environment

Temperature :

15 – 30 °C

Software

Minimum computer specification :

Windows 7 Professional 64 bit, 4th Gen Intel(R) Core I7 Processor (Quad Core HT, 3.4 GHz Turbo, w/ HD Graphics), 8 GB 1600 MHz DDR3 memory, 500 GB 3.5 inch SATA (7200 RPM) HDD, Full-HD monitor
