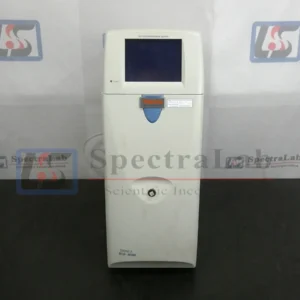

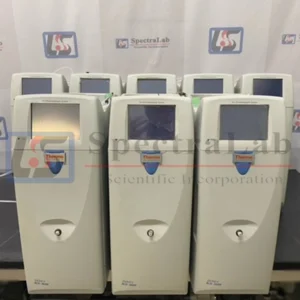

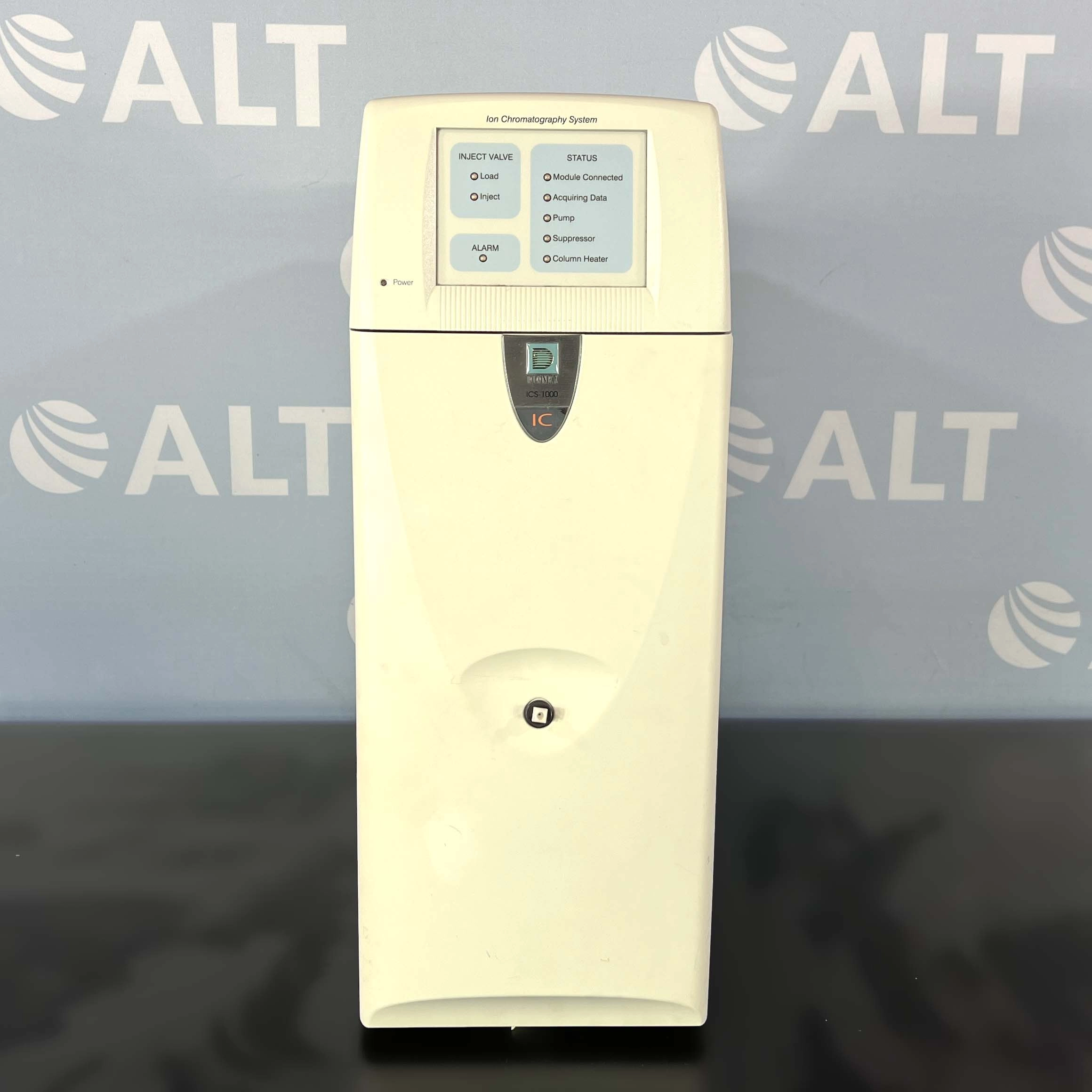

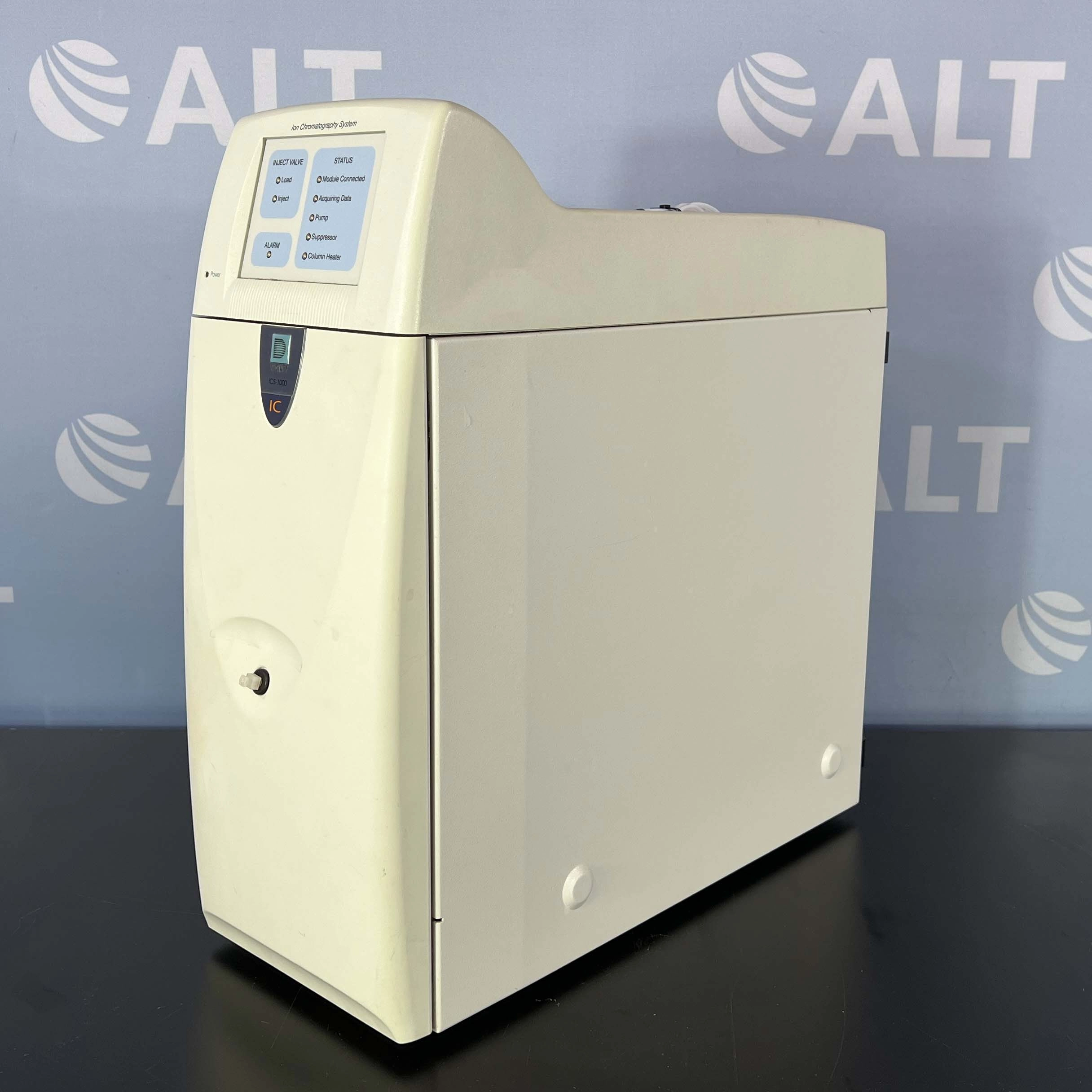

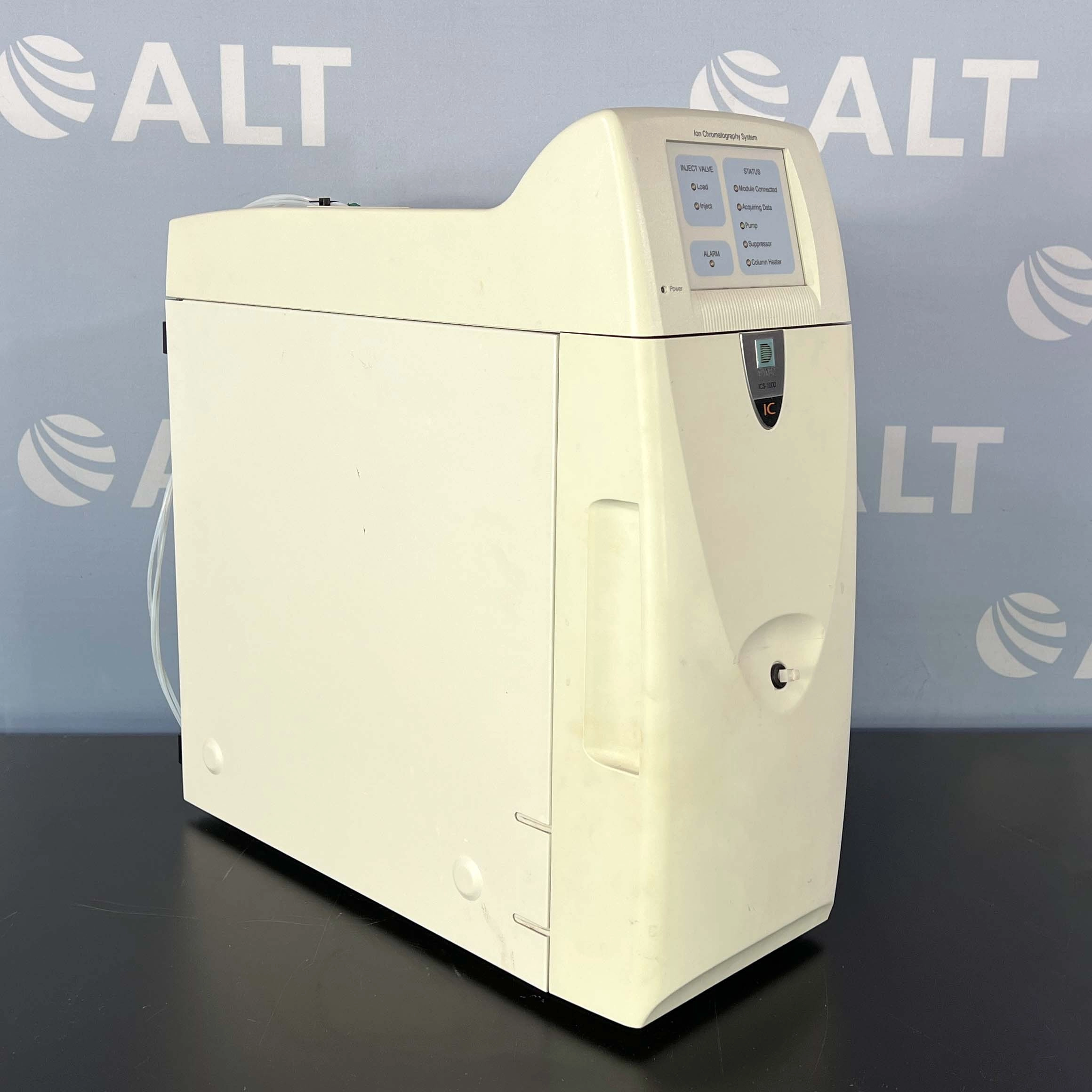

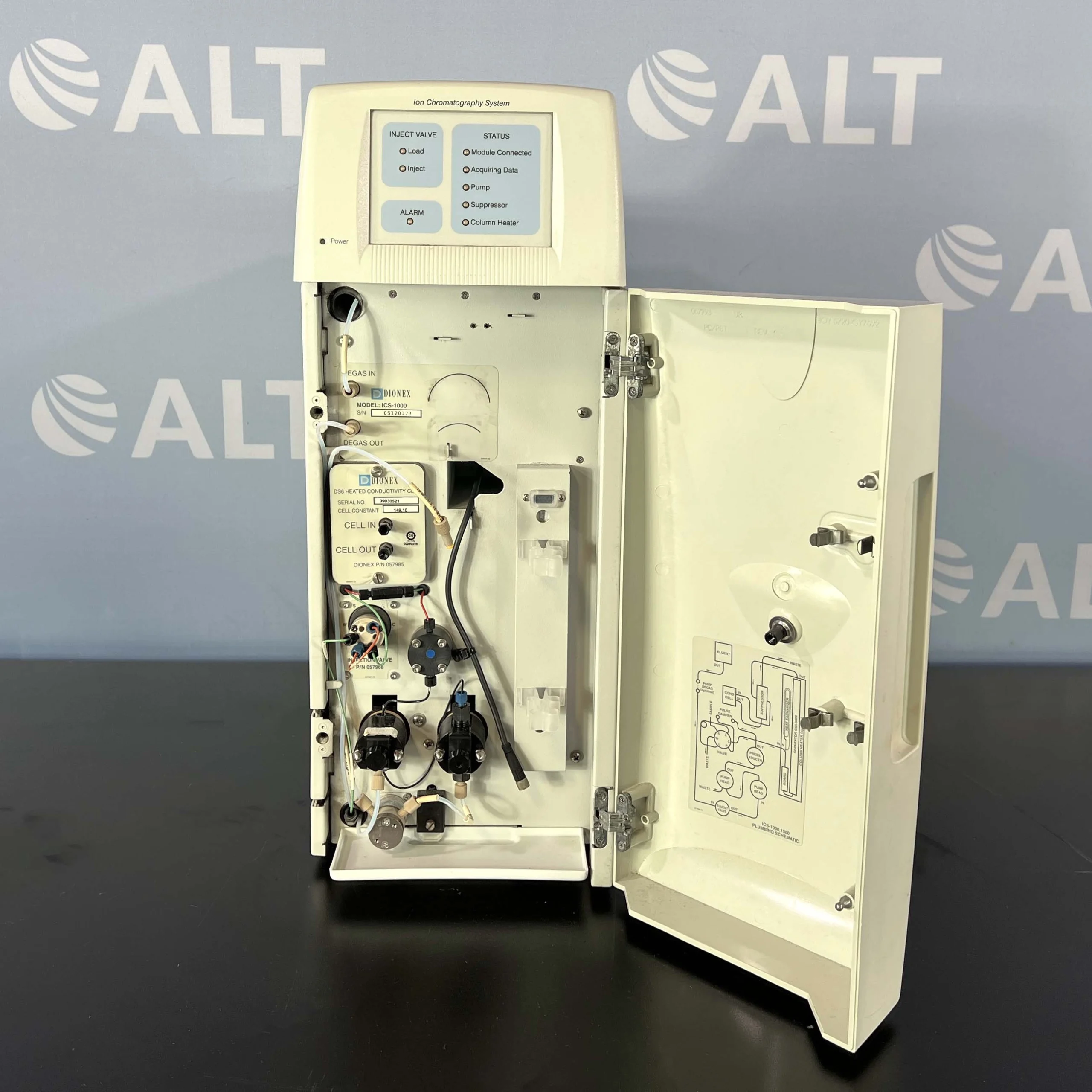

The Dionex ICS-1000 Ion Chromatography System is a versatile and reliable ion chromatography platform. It’s designed to facilitate the separation, identification, and quantification of ions in various sample matrices.
The Dionex ICS-1000 Ion Chromatography System enables the analysis of an extensive range of ions present in diverse sample types, including environmental, biological, and industrial samples. The unit delivers accurate quantification and detection of ions, even at trace levels.
Specifications:
Dimensions: 8.8″ W x 21″ D x 22.1″ H (22.4 x 53.3 x 56.1 cm)
Power: 100-240V, 60Hz
Weight: 66 lb (30 kg)
Sound level: <52 dBA
Front Panel Indicators: Power, Inject Valve Position, Alarm, Instrument Status
Type: Dual-piston (in series), variable speed, 100 µL per revolution
Detector, Range 0 to 15000 µS (digital output)
Temperature Compensation: 1.7% per °C
Cell Drive: 8 kH square wave
Linearity: Correlation >0.999; %RSD <5% to 800 µS
Pump, Flow Rate Settable range: 0.00 to 5.00 mL/min, in 0.01 increments
Pump, Optimal Operational Range: 0.40 to 2.0 mL/min
Pump, Flow Accuracy: <1% of set value within the optimal operational range
Pump, Flow Precision: <0.2%
Pump, Operating Pressure: 35 MPa (5000 psi), maximum
Pump, High Pressure Limit: 0.7 to 34.4 MPa (100 to 5000 psi)
Pump, Low Pressure Limit: 0.0 to 33.7 MPa (0 to 4900 psi)
Pump, Delay Volume: <800 µL
Pump, Pressure Ripple: <1% at 13.8 MPa (2000 psi) and 1.0 mL/mi
